Create a Self-Signed Certificate with PowerShell

Share KeePass Passwords with your Team of multiple users

Certificates are are an integral part of security as they help to establish trusted connections.

By following these steps below, you can configure a trusted connection to your server using Self-Signed certificates.



Background information: When hosting software, a valid certificate enables encrypted connections to browsers and other software clients.

  • We usually recommend using a purchased 3rd-party certificate from a Trusted Certificate Authority. However in some cases they are required (e.g. for use with Azure) or useful for testing / internal use.
  • You can follow these technical steps to create your own Self-Signed Certificate.

Other alternatives:

  • Purchase a 3rd-party certificate from a Trusted Certificate Authority
  • Creating a certificate using IIS (requires IIS Hosting)
  • Use a Certificate Authority like Let's Encrypt, which provides free certificates.
  • Azure now provides free certificates (preview).

Related topic:

How to Mitigate Certificate Warning Messages

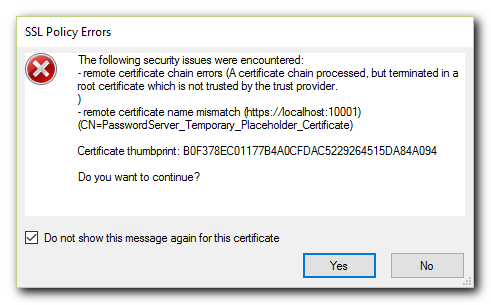

When first connecting KeePass to a new server, you will receive a warning message that a valid certificate has not been set up yet.

ssl policy error popup

Overview Server Machine:

    1. Create a Self-Signed Certificate and Certificate Authority (CA)
    2. Export the CA and Self-Signed Certificate
    3. Import the Self-Signed Certificate
    4. Restart Pleasant Password Service

Overview Client Machine:

    1. Export the Trusted Root CA
    2. Import the Trusted Root CA on the client machines

Create a Self-Signed Certificate and Certificate Authority (CA)

If installing on Windows Server 2012 R2, then use an alternate method to create the self-signed certificate.

The following PowerShell commands and instructions will create a Root Certificate and a Self-Signed Certificate, both valid for 10 years, and will place them in the Certificate Store on the local machine.

Run the Command Prompt by typing "cmd" in the Windows search bar and right click and choose "Run as administrator."

PowerShell Commands to Create Certificates

Enter PowerShell:

  • Type "powershell" in the command prompt window (or open the PowerShell ISE)

cmd powershell

Step 1. Create a Certificate Authority (CA) by running the following command (or copy paste the following script and hit enter).

  • FIrst replace the generic name "MyRootCA" to a name of your choice:
$rootCA = New-SelfSignedCertificate -Subject "CN=MyRootCA,O=My Company, Inc,OU=https://MyWebsite.com"  `
-CertStoreLocation "cert:\LocalMachine\My"  `
-KeyExportPolicy Exportable  `
-KeyUsage CertSign,CRLSign,DigitalSignature  `
-KeyLength 4096  `
-KeyUsageProperty All  `
-KeyAlgorithm 'RSA'  `
-HashAlgorithm 'SHA256'  `
-Provider "Microsoft Enhanced RSA and AES Cryptographic Provider"  `
-NotAfter (Get-Date).AddYears(10)

Step 2. Now create a Self-Signed Certificate for your site, by running this command. The name should include the same address that your users will use to connect.

  • First replace "MyPPassSite.org" (mentioned twice) with the site name, a URL that users will use site:
    • e.g. "CN=ppass.domain.org", OR,
    • e.g. "CN=*.domain.org"
$siteCert = New-SelfSignedCertificate -Subject "CN=MyPPassSite.org"  `
-Signer $rootCA  `
-KeyLength 2048  `
-CertStoreLocation "cert:\LocalMachine\My"  `
-KeyExportPolicy Exportable  `
-KeyUsage DigitalSignature,KeyEncipherment  `
-DnsName MyPPassSite.org  `
-KeyAlgorithm 'RSA'  `
-HashAlgorithm 'SHA256'  `
-Provider "Microsoft Enhanced RSA and AES Cryptographic Provider"  `
-NotAfter (Get-Date).AddDays(350)

Now we we can print out the certificate details by just entering the file name and hitting enter. This will help us in a future step:

  • $siteCert

Save the Thumbprint value for a future step.

cmd create self signed certificate

Step 3. Export the Certificate Authority certificate.

Now the both certificates can now be found in the Certificate Store, with the Root certificate in the Trusted Roots folder, and the site Certificate found under Personal certificates.

Run the following commands to export the certificates to the current folder:

# Export Root Certificate to .pfx and .cer files
$CertPassword = ConvertTo-SecureString -String "YourPassword" -Force –AsPlainText
Export-PfxCertificate -Cert $rootCA -FilePath ".\MyRootCA.pfx" -Password $CertPassword
Export-Certificate -Cert $rootCA -FilePath ".\MyRootCA.cer"
# Export Site Certificate to .pfx and .cer files
$siteCertPwd = ConvertTo-SecureString -String "YourPassword" -Force -AsPlainText
Export-PfxCertificate -Cert $siteCert -FilePath ".\SiteCert.pfx" -Password $siteCertPwd
Export-Certificate -Cert $siteCert -FilePath ".\SiteCert.cer"

The .pfx files contain private keys and should be kept in secure locations.
The root .cer certifcate can be distributed to other machines in your network.

 Step 4. Now that the certificates are in the store, we can also ensure that the Root certificate is placed in the the Trusted Root folder. Fun these import commands on the server machine(s) to trust the certificate:

Import-Certificate -CertStoreLocation cert:\LocalMachine\AuthRoot -FilePath ".\MyRootCA.cer"

Step 5. Now the following commands will configure Password Server to use this new certificate.

  • Note: if you are using IIS, you will also need to import the certificate into IIS for the site.

Use the sections below for information on: exporting, importing with Service Config, or distributing to other machines.

  • First, replace these values:
    • "MyPPassSite.org", replace with your certificate name (CN name)
    • "63DF81FF0024F...", replace with the resulting Thumbprint value (step 2)
  • Run the commands
  • Restart the service/site.
Set-ItemProperty "HKLM:\Software\Pleasant Solutions\PasswordManager" -Name CertificateName -Value "MyPPassSite.org"
Set-ItemProperty "HKLM:\Software\Pleasant Solutions\PasswordManager" -Name ThumbPrint -Value "63DF81FF0024F999D2A5B077F6152480E6C31F0"

Step 6. Now we can distribute the public Root certificate (.cer) to the machines that will connect to this site.

There are multiple methods of adding this Root Certificate to the Trusted Root folder in the certificate store.

A) The easiest and most common way to distribute certificates across all machines in an Active Directory envrionment, is by using Group Policy:

B) Run the import commands on the machine(s):

Import-Certificate -CertStoreLocation cert:\LocalMachine\AuthRoot -FilePath ".\MyRootCA.cer"



Export the CA and Self-Signed Certificate

Run the certificate manager as administrator by entering certlm.msc in the windows search bar and choosing "Run as administrator."

run certificate manager

Expand both the "Personal" and "Trusted Root Certification" directories. In the Personal Certificates folder, you will find both the CA and the Self-Signed Certificate that we created in the previous steps.

Drag and drop the CA file "MyRootCA" from the "Personal Certificates" directory into the Trusted Root Certification Certificate directory.

certificate manager move CA

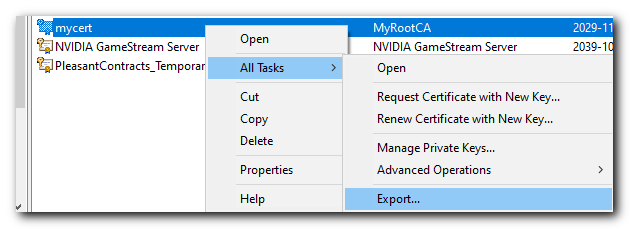

Next we will right-click the Self-Signed Certificate file "mycert" and choose All Tasks > Export

export self signed certificate

Click Next then select "Yes, export the private key". This key should be stored securely.

      • Select "Personal Information Exchange - PKCS #12 (.PFX)
        • Ensure both "Include all certificates in the certification path if possible" and
        • "Enable certificate privacy" are both checked before clicking Next once again.

You can also export again without the private key to a .cer file, which file can be distributed to other machines.

export certificate wizard

Then enter a password to protect your certificate and set the encryption to AES256-SHA256 and click next.

export certificate password

Then give the exported certificate a meaningful name. Click Next.

Then we will be at the final review page and click Finish.

export certificate finish

Import the Self-Signed Certificate

Next we will run the Pleasant Password Server Service Configuration utility by typing "Service" in the windows search bar.

run service configuration utility

Once the Service Configuration utility opens click the "Certificate Configuration" button, then click "Import Certificate." You will be able to find the recently created self-signed certificate that we just exported in the C:\Windows\System32 directory then select the file.

Restart Pleasant Password Service

In the windows search bar type "Services" to run the windows services utility. Find the Pleasant Password Server service and click Restart.

 windows services

Congratulations! You now have a trusted certificate!

Export the Trusted Root CA

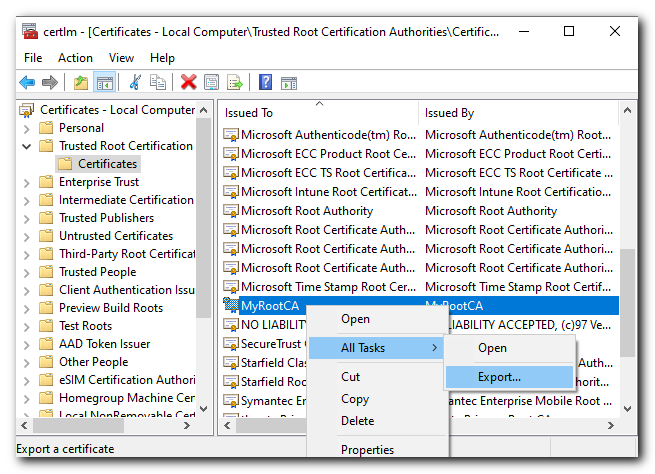

Return back to the Certificate store and export the Trusted Root CA we created earlier and moved to the "Trusted Root Certification" Certificate directory

export root CA

Click Next then select "No, do not export the private key"

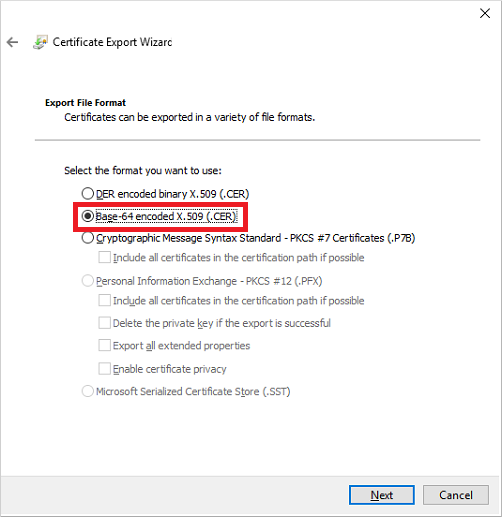

      • Select "Base-64 encoded X.509 (CER)" and click Next

export cert to cer file

Give the exported file a name (could give it the same name to keep it simple) click Next and then review the details and click Finish.

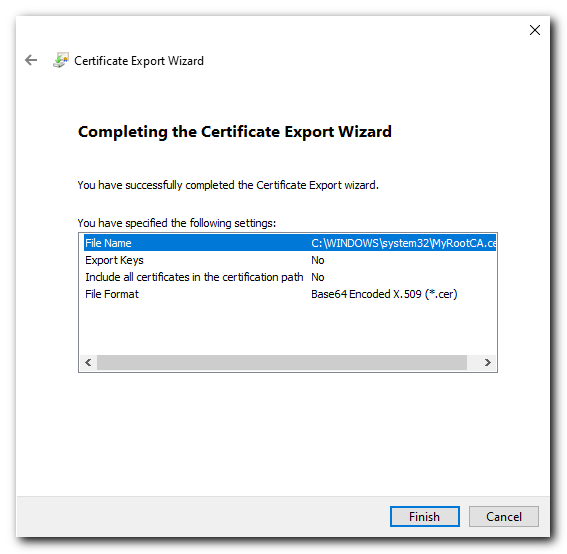

export root CA finish

Import the Trusted Root CA into Client Machines

This step will need to be repeated on every client machine that connects to the server.

You will be able to find the recently created Trusted Root CA file that we just exported in the C:\Windows\System32 directory then select the file.

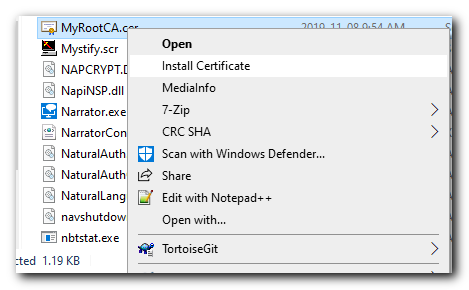

Copy the file we just exported to the client machine. Then Right click the certificate file and select "Install Certificate"

install certificate

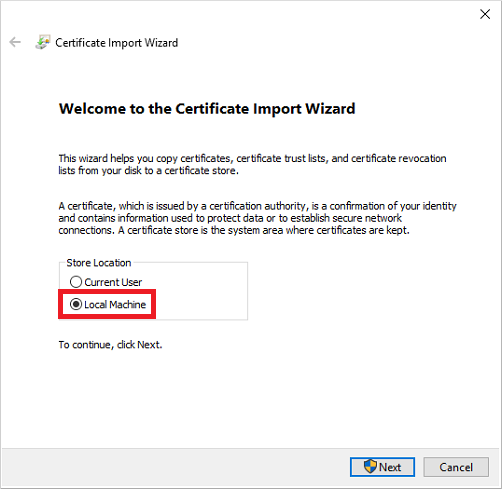

Then run choose Local machine

import cer file

Select the "Place all certificates in the following store" radio button and click Browse...

And select the "Trusted Root Certification Authorities" and click next.

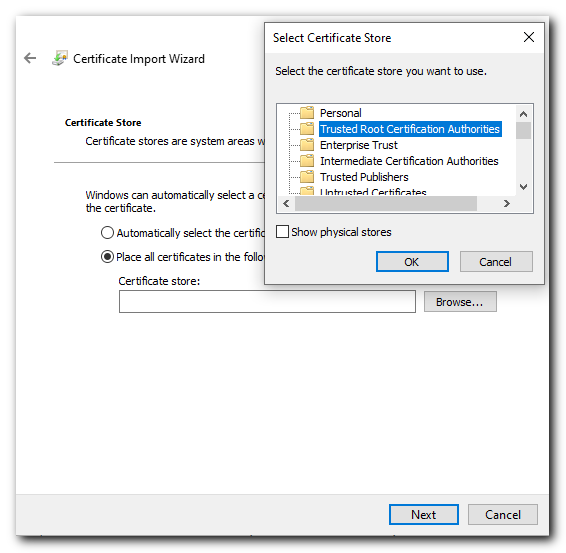

import trusted root CA

Review the action and click Finish.

Congratulations! Now your client machine will trust your self signed certificate!

Installing on Windows 7 Client Machine

The only major difference with Windows 7 is how we access the certificate store.

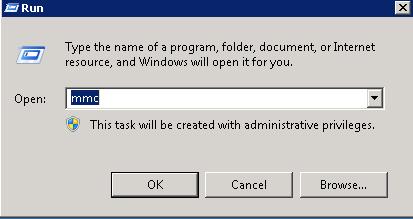

Click Start -> Run -> Enter 'MMC' and click 'OK'

install root CA

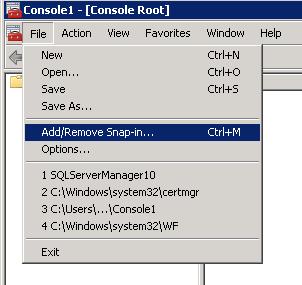

Click File > Add/Remove Snap-In

install root CA2

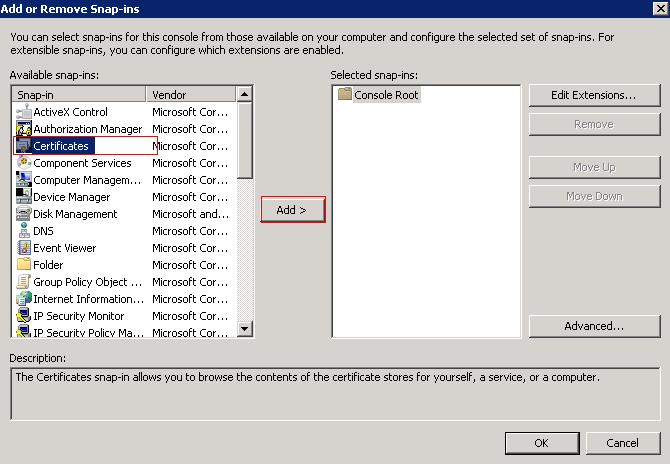

Locate "Certificates" on the left and click "Add"

install root CA 3

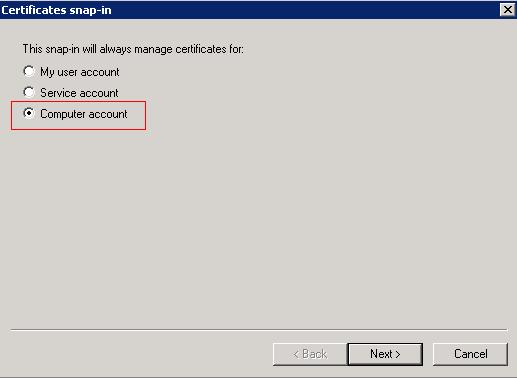

Select "Computer Account" radio button and click next.

install root CA 4

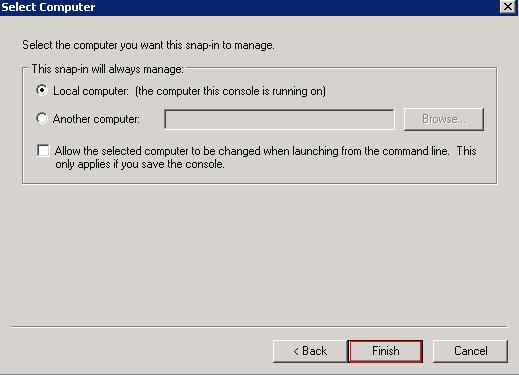

Ensure the "Local Computer" radio button is selected and click Finish

install root CA 5

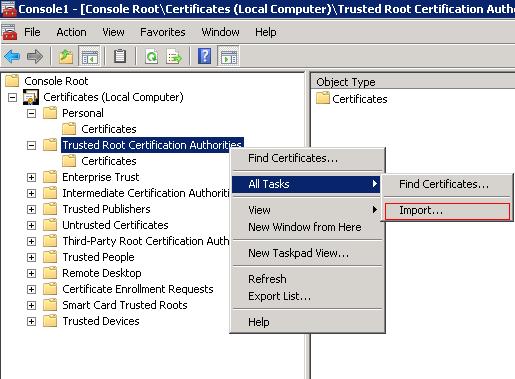

Then select Ok which will open the Console1 window. Right Click the "Trusted Root Certification Authorities" and choose All Tasks > Import.

Install root CA 7

From here the instructions are the same as for Windows 10.



Problems?

    • Double-Check Service startup

    • If Hosting with IIS, remember to stop and disable the service.

    • Contact Support with your specific configuration and a description of the problem you are having.
